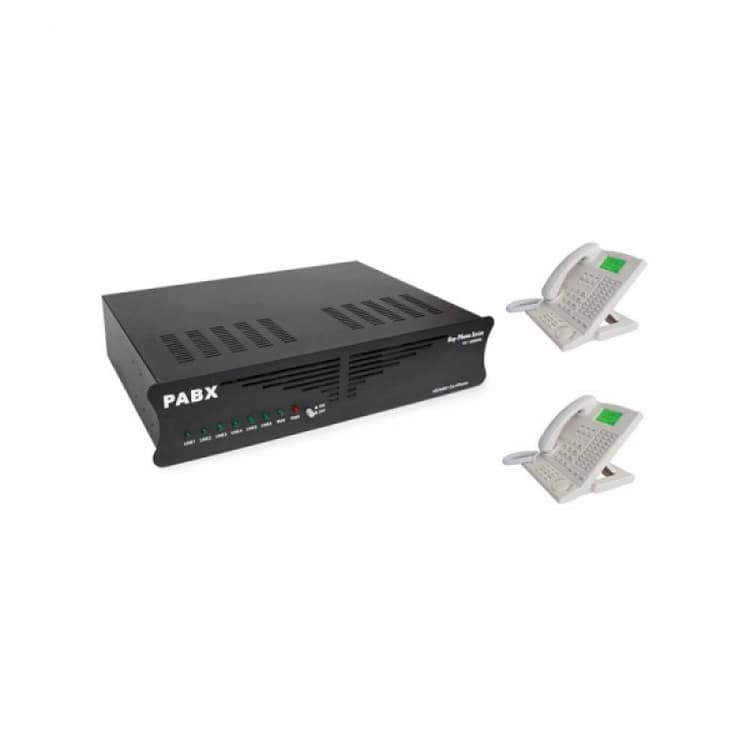

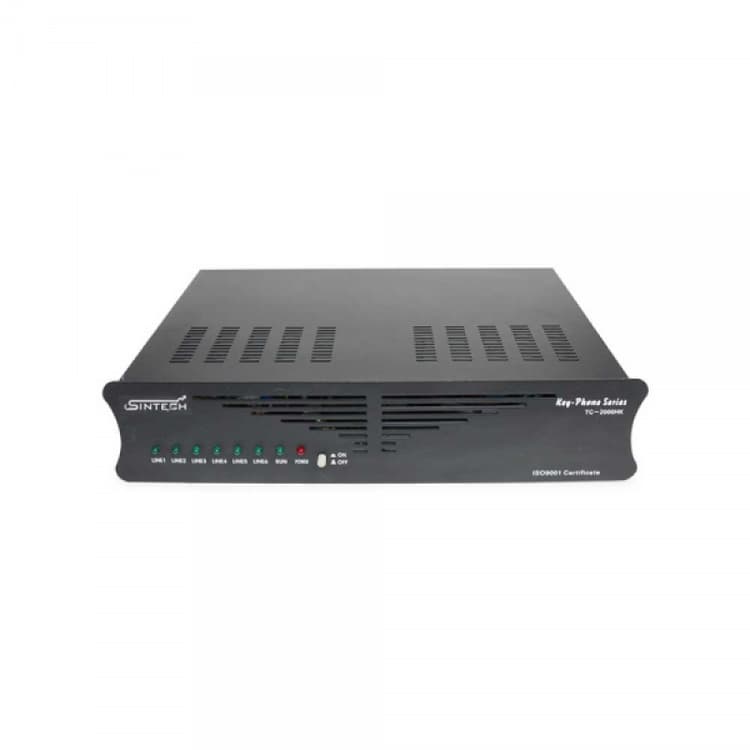

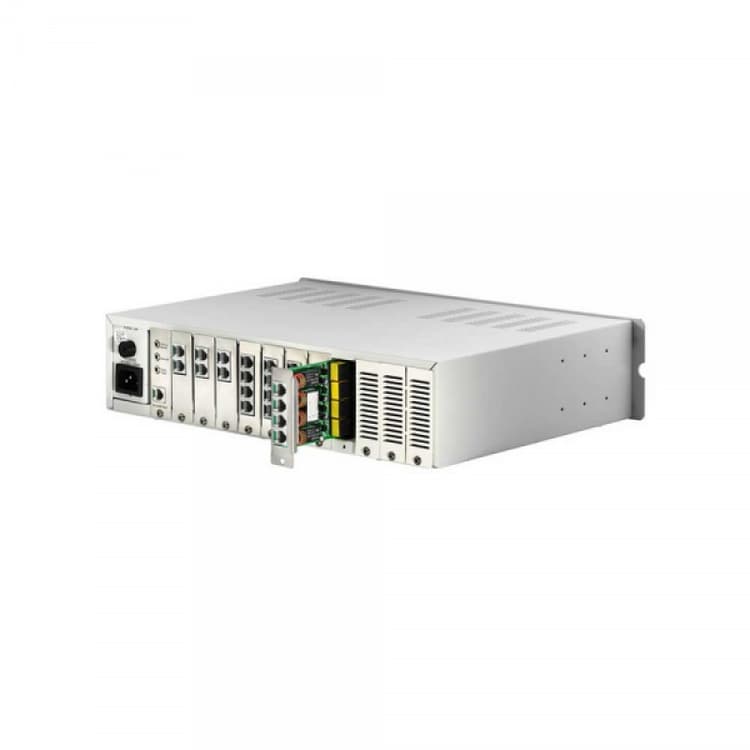

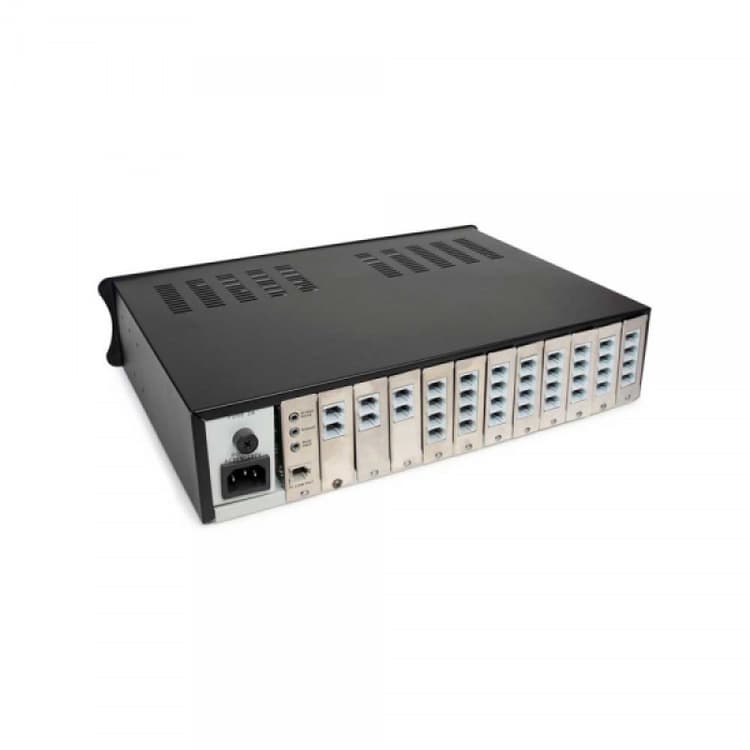

Sintech Hybrid PABX with Keyphone support, 6 CO & 32 Extensions (TC-2000HK)
This is an expandable Hybrid PABX system with a maximum of 2 to 6 CO lines and 8 to 32 Extension lines. It has a full caller ID & 60-sec welcome message record. It is very easy to use and suitable for Hotels & Factories...
Features
- CO lines: 2 to 6 & Extensions: 8 to 32 lines
- Master key phone set support up to 8 units
- Welcome MSG Record 60second (3-duration: 30s-15s-15s)
- Flexible Extension Number (2-4 digits)
- Full Caller ID (External, Internal & Transfer)
Description:
System Feature
* Self-extension number confirmation
* Pulse and tone mode setting
* Power failure transfer
* Welcome msg record: 60second, 3-duration, 30s-15s-15s
* Remote Program
* Executive busy override
* Extension number assignable freewill
* Polarity Reverse Detection (for billing)
Receiving Call Feature
* DISA Auto-attendant
* Operator Attendant
* Call Transfer
* 3-party Conference Call
* Busy Transfer
* Unconditional Transfer
* Call Transferred to Secretary
* Call Pick up
* External and extension caller ID
* Transferred caller ID
* Do Not Disturb(DND)
* Day/Night service
* Extension ring by turns
* Outside caller call extension by one touch
* External music on hold socket
* 32 extension ringing assignable
Optional Feature
* UK/US/AU/EUR Power Plugs
* 110V or 220V power supply
Making call Feature
* Dial 0 or 9 for CO line
* Select Desired CO line
* Least cost routing
* IP code access automatically
* Extension password
* Extension Lock
* Hotline ( call to the operator without dialing)
* Ringback on busy ( when Ext. becomes free)
* Speed dialing
* Extension outgoing call class
* Outside ( CO ) Line Duration Time Limit
* Dial 9 or 0 to the operator
* Exclusive Line
* Allow extension use appointed CO line
* Personal account
* Call on holding
Technical specifications
Power: AC110V or AC220V 50-60Hz
Feed Currency: DC48V; 25mA
Ringing Currency: AC65v/50Hz
DISA: 60second, 3-duration, 30s-15s-15s
Communication path: 7
Extension number length: 2 to 4 digits
Caller ID:
* Receive: Auto adapt DTMF, FSK (Bell.202)
* Send: FSK (Bell.202)
Dial mode: DTMF
Degree of Unbalance about earth:
* 300Hz~600Hz≤40dB
* 600Hz~3400Hz≤46dB
Transmission Attributes:
* Extension to extension ≤1.5dB
* Extension to extension ≤2.0dB
