• 6 buttons in Outdoor unit for 6 floor Apartment

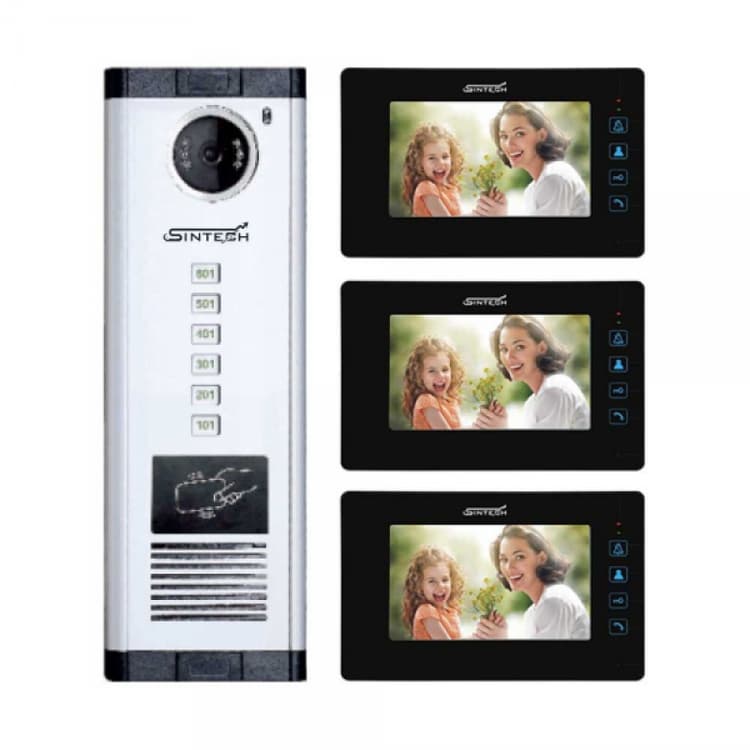

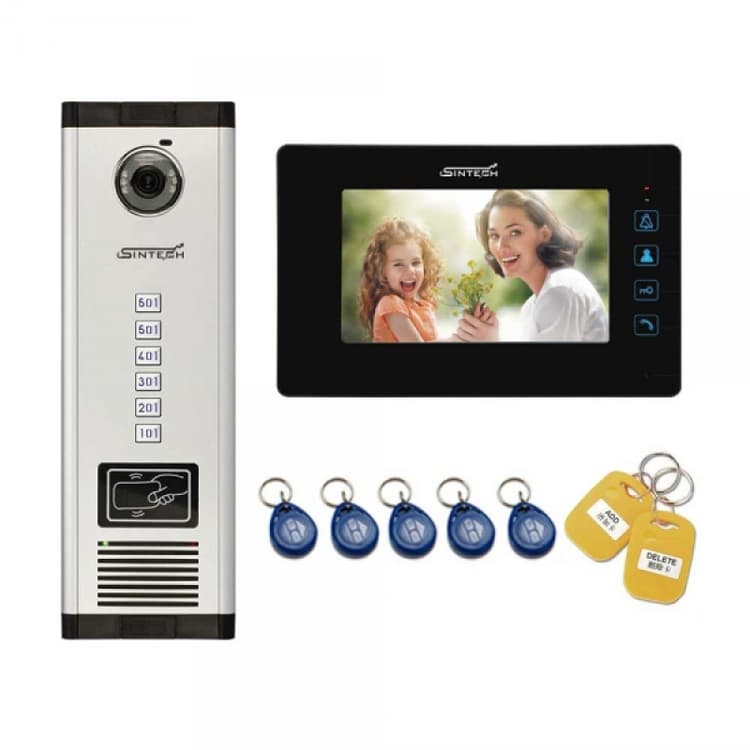

• combination: 1 outdoor camera with 1-6 indoor monitor
• User capacity: 2000 Rfid Card Support
• Resolution: 800 x 480 (16:9 display)
• 7 inch TFT digital color Screen Indoor unit.
• Touch screen, fashionable & luxury LCD Screen
• Water-resistance Outdoor Camera with touch button
• Lens : 1.3MP / 960P, 2.8mm & 110 degree angle
• 4 Wire Connection for Easy installing
• 10 meter Night Vision Distance
• Hands-free Video intercom(Clear Video & Audio)
• Volume, Brightness & Contrast adjustable
• 25kinds of rings for your options
• FCC, CE, RoHS Certified

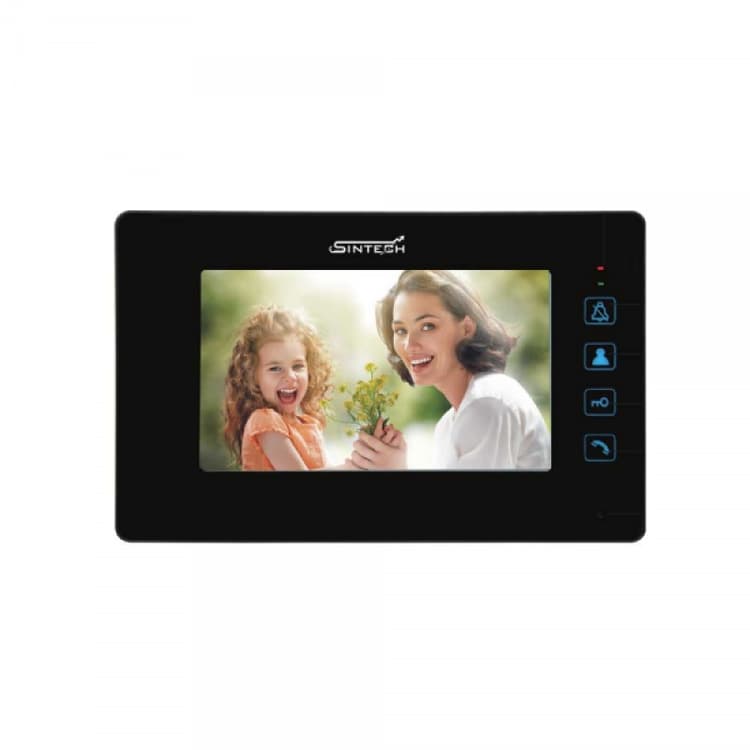

Indoor monitor specifications:

Touch screen color LCD Monitor

Display Screen: 16:9 Colored Analog LCD

Size of Display Screen: 7 inches

Display Screen Pixel: 800×480

Wire Connection: Four-wired

Brightness: 250

Power Supply: DC15V  2A

Operating Power: 8W

Auto Shut-off: 1 minute on monitoring and 2 minutes on intercom.

Intercom Sensitivity: -60dB

Ring Tone: 16 chord ring tones

Operating  Temperature: -20°C~+50°C

Idle Temperature: -35°C~+65°C

Dimension: 240(L)*160(W)*28(D)mm

Weight: 440g

Weight of Power Adapter: 140g

Intercom Delay Time: 120S±10%

Monitoring Delay Time: 40S±10%

Standard Wiring: four-core wire (5m free, Max 300m)

Effective Length of Wire: 100 meters (4*0.65MM²)

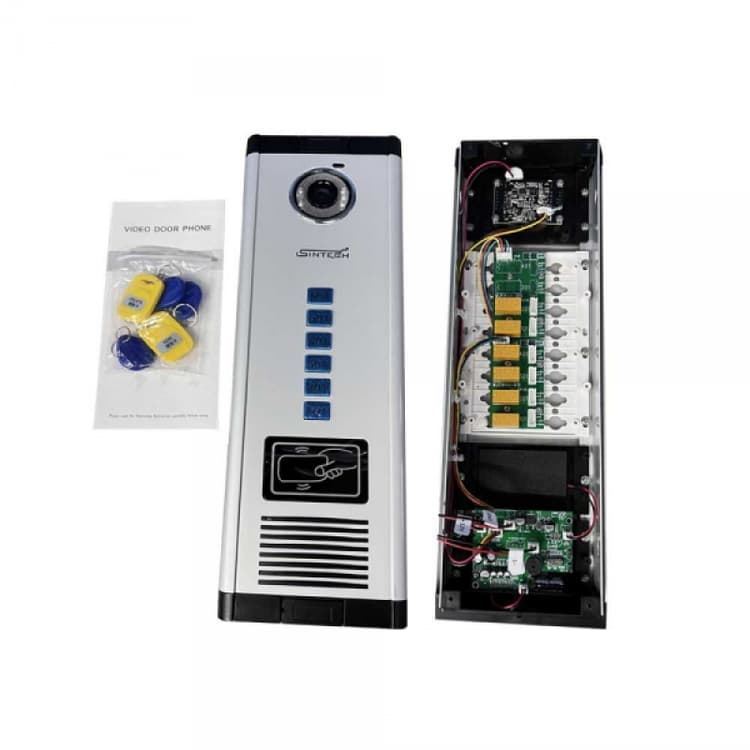

Outdoor unit specification:

6 buttons for 6floor apartment

Camera Chip: CMOS or CCD

Rfid card support (2000users)

combination: 1 outdoor camera with 1-6 indoor monitor

Wire Connection: Four-wired

Definition: 1.3 Megapixel

System: PAL or NTSC

Size of Lens: 2.8mm

Angle of Lens: 110°

Power: DC12V 2A

Light Source at Night: Infrared LED

Operating Temperature: -20°C~+50°C

Idle Temperature: -35°C~+65°C

Connection video:
